Aegrelee 600DT, LCD, 15functions (count down)| 0.1s..10h res. 0.1s, 1CO SPDT 8A 250VAC, cv 20..240VAC/DC, 17.5mm, TS35 Kood:
600DT-CU
Hind
Tootja
:
|
Saadavus:
14 päeva
|
Kaal:
0.069 kg/tk
|
|
|
|
|
|
Aegrelee LSD 1SPDT 0s...10h 8A 20...240VAC/DC DIN relsile 15 funktsiooni
 |
Features:
- 15 Functions
- 8 Time Ranges
- Front Key pad Setting
- Universal supply voltage
- Slim, Space Saving Design
- DIN Rail Mount

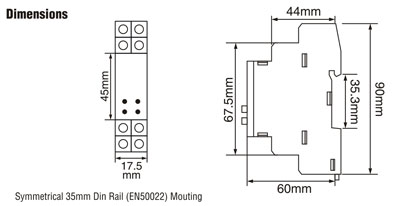

- Size: DIN 17.5mm
|
|
![]()
| |
Input Specifications:
|
| Accuracy: |
Setting: ±0.1% of set time or ±50msec
whichever is greater)
Repeat: ±0.1% |
| Reset: |
Front Key, On interruption of power
reset time <100msec |
Output Spetcifications:
|
| Output Contact: |
SPDT (1 C/O) |
| Contact Rating: |
8A @ 250V AC |
Functional Spetcifications:
|
| Modes: |
On delay (A)
Interval (B)
Asymmetrical cyclic OFF first (C)
Asymmetrical cyclic ON first (D)
Cyclic equal OFF first(E)
Cyclic equal ON first(E)
Pulse output (H)
Delay on break (J)
Delay on make (K)
Interval after break (L)
Single shot (P)
Retriggerable Single shot (Q)
Latching relay (R)
Delay with Totalise (t)
Interval with Totalise (U) |
| Time Ranges: |
0 - 99.9 sec / min/ hr
0 - 999 sec / min / hr
0 - 9:59 min:sec
0 - 9:59 hr:min |
| Counting Direction: |
Down |
| Memory: |
Yes (selectable) |
Supply Voltage:
|
| Supply Voltage: |
20-240V AC (AC : 50/50Hz) |
| Power Consumption: |
4VA max |
Enviromental Specifications:
|
| Temperature: |
Operating: 0 to 50ºC (32 to 122ºF)
Storage: -20 to 75ºC (-4 to 167ºF) |
| Humidity (non-condensing): |
95% RH |
| Weight: |
69g |
| Protection Level: |
IP40 for Casing
IP20 for terminals |
|
|
|
|
|
|
|
|
